Product Summary
The Device is a monolithic integrated high volt-
age, high current four channel driver designed to
accept standard DTL or TTL logic levels and drive
inductive loads (such as relays solenoides, DC
and stepping motors) and switching power tran-
sistors.
L293DD013TR
To simplify use as two bridges each pair of chan-
nels is equipped with an enable input. A separate
supply input is provided for the logic, allowing op-
eration at a lower voltage and internal clamp di-
odes are included.
This device is suitable for use in switching appli-
cations at frequencies up to 5 kHz.
L293DD013TR is assembled in a 16 lead plastic
packaage which has 4 center pins connected to-
gether and used for heatsinking

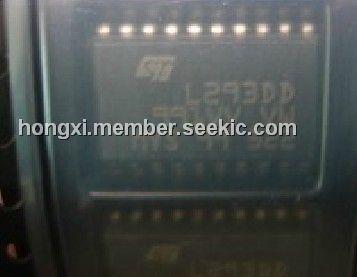

L293DD013TR is assembled in a 20 lead surface
mount which has 8 center pins connected to-
gether and used for heatsinking.
Parametrics
Symbol Parameter Value Unit
VS Supply Voltage 36 V
VSS Logic Supply Voltage 36 V
Vi Input Voltage 7 V
Ven Enable Voltage 7 V
Io Peak Output Current (100 渭s non repetitive) 1.2 A
Ptot Total Power Dissipation at Tpins = 90 掳C 4 W
Tstg, Tj Storage and Junction Temperature 鈥?40 to 150 掳C
Features
600mA OUTPUT CURRENT CAPABILITY
PER CHANNEL
1.2A PEAK OUTPUT CURRENT (non repeti-
tive) PER CHANNEL
ENABLE FACILITY
OVERTEMPERATURE PROTECTION
LOGICAL "0" INPUT VOLTAGE UP TO 1.5 V
(HIGH NOISE IMMUNITY)
INTERNAL CLAMP DIODES
Diagrams
