Product Summary

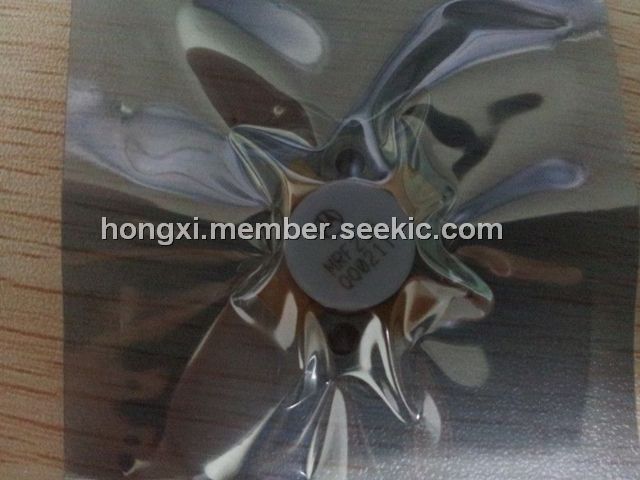

(1)MRF255 Designed for broadband commercial and industrial applications at frequencies to 54 MHz. The high gain, broadband performance and linear characterization of this device makes it ideal for large鈥搒ignal, common source amplifier applications in 12.5 Volt mobile and base station equipment.
(2)MRF255 Guaranteed Performance at 54 MHz, 12.5 Volts;
Output Power 鈥?55 Watts PEP;
Power Gain 鈥?13 dB Min;
Two鈥揟one IMD 鈥?鈥?5 dBc Max;
Efficiency 鈥?40% Min, Two鈥揟one Test;
(3)Characterized with Series Equivalent Large鈥揝ignal Impedance Parameters;
(4)Excellent Thermal Stability;
(5)All Gold Metal for Ultra Reliability;
(6)Aluminum Nitride Package Electrical Insulator;
(7)MRF255 Circuit Board Photomaster Available by Ordering Document; (8)MRF255PHT/D from Motorola Literature Distribution.
Parametrics
Rating Symbol Value Unit
Drain鈥揝ource Voltage VDSS 36 Vdc
Drain鈥揋ate Voltage (RGS = 1.0 M?) VDGR 36 Vdc
Gate鈥揝ource Voltage VGS 卤20 Vdc
Drain Current 鈥?Continuous ID 22 Adc
otal Device Dissipation @ TC = 25掳C PD 175 Watts
erate above 25掳C 1.0 W/掳C
Storage Temperature Range Tstg 鈥?5 to +150 掳C
Operating Junction Temperature TJ 200 掳C
Features
(1)55 W, 12.5 Vdc, 54 MHz; (2)N鈥揅HANNEL; (3)BROADBAND; (4)RF POWER FET
