Product Summary

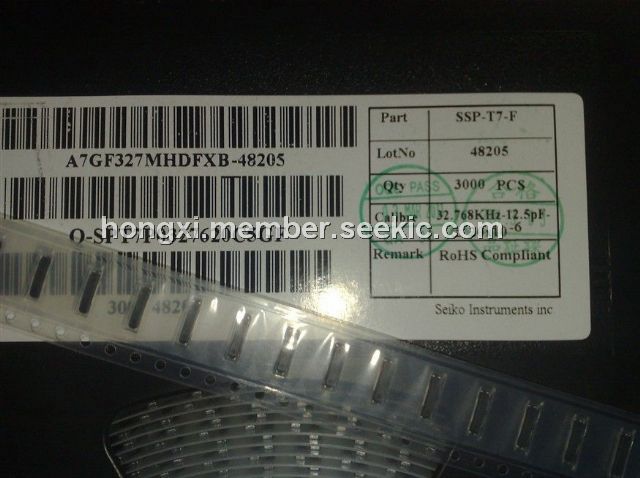

The SSP-T7-F is a Surface Mount Quartz Crystal Unit for Low Frequencies. The applications of the dSSP-T7-F include Cellular Phones, PDA, DSC, Car audio, GPS Module, FM Tuner Module, ZigBee, Glucose Meter, Payment Terminal, Clock Source for Micro-Computers, Portable Applications etc.The SSP-T7-F
Parametrics
SSP-T7-F absolute maximum ratings: (1)Nominal Frequency, f-nom: 32.768kHz; (2)Frequency Tolerance, f-tol: ±20×10-6, ±50×10-6; (3)Turnover Temperature, Ti: 25±5℃; (4)Parabolic Coefficient, B: (-3.5±1.0)×10-8/℃2; (5)Load Capacitance, CL: 7.0pF/12.5pF; (6)Motional Resistance (ESR), R1 typ/max: 44kΩ/65kΩ; (7)Absolute Maximum Drive Level, DLmax: 1μW; (8)Level of Drive. DL: 0.1μW; (9)Shunt Capacitance, Co: 0.8pF typ; (10)Frequency Ageing, f-age: ±3×10-6; (11)Operating Temperature, T-use: -40 to 85℃; (12)Storage Temperature, Tstg: -55 to 125℃.
Features
SSP-T7-F features: (1)Ultra thin type with height 1.4mm Max; (2)SMD type suitable for automatic & high density surface mounting; (3)Plastic mold package containing highly reliable tubular type quartz crystal; (4)Excellent shock and heat resistance; (5)RoHS directive compliant.
Diagrams
<IMG border=0 alt="SSP-T7-F dimensions" src="http://www.seekic.com/uploadfile/ic-mfg/201262943939965.jpg">
 |
