Product Summary

The 1N5222 is a silicon 500mW zener diode.

Parametrics

1N5222 absolute maximum ratings: (1)operating and storage temperature: -65 to 200℃; (2)DC power dissipation: 500mW; (3)power derating: 3.3mW/℃ above 25℃; (4)forward voltage at 200mA: 1.1Volts.

Features

1N5222 features: (1)2.4 thru 200Volts; (2)compact package.

Diagrams

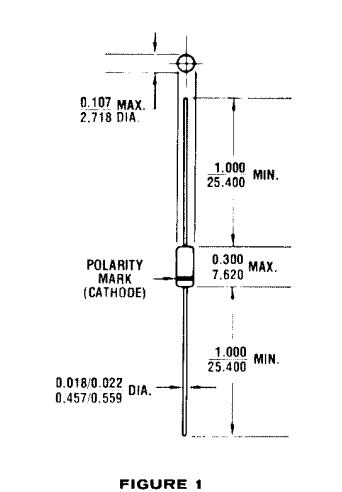

1N5222 dimensions
