Product Summary
The S-80750SN-JE-T1 is an adjustment-free high-precision voltage detector made using the CMOS process. The output voltage is fixed internally, with an accuracy of ±2.4%. The S-80750SN-JE-T1 features much lower current consumption and higher detection voltage accuracy than the S-805 Series. The applications of the S-80750SN-JE-T1 include Battery checker, Battery backup for memories, Power failure detector, Reset for microcomputer and Store signal detector for non-volatile RAM.
Parametrics
S-80750SN-JE-T1 absoltue amximum ratings: (1)Power supply voltage, VDD-VSS: 18 V; (2)Input voltage, VIN: VSS-0.3 to VDD+0.3V; (3)Output voltage, Nch open-drain, VOUT: VSS-0.3 to 18V; CMOS: VSS-0.3 to VIN+0.3V; (4)Output current, IOUT: 50 mA; (5)Power dissipation, PD: 200 mW; (6)Operating temperature, Topr: -30 to +80℃; (7)Storage temperature, Tstg: -40 to +125℃.
Features
S-80750SN-JE-T1 features: (1)Ultra-low current consumption 1.0 μA typ. (VDD=4.5 V); (2)High-precision detection voltage ±2.4%; (3)Wide operating voltage range 1.0 to 15 V; (4)Good hysteresis characteristics 5% typ; (5)Wide operating temperature range -30 to+80℃; (6)3 output forms : Nch open-drain, CMOS output active H, active L; (7)TO-92, SOT-89-3 and SOT-23-5 package.

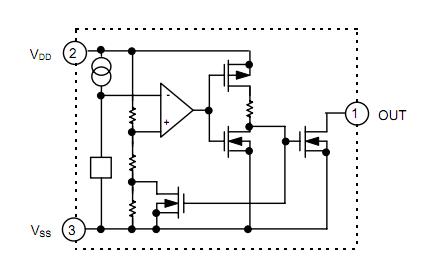

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

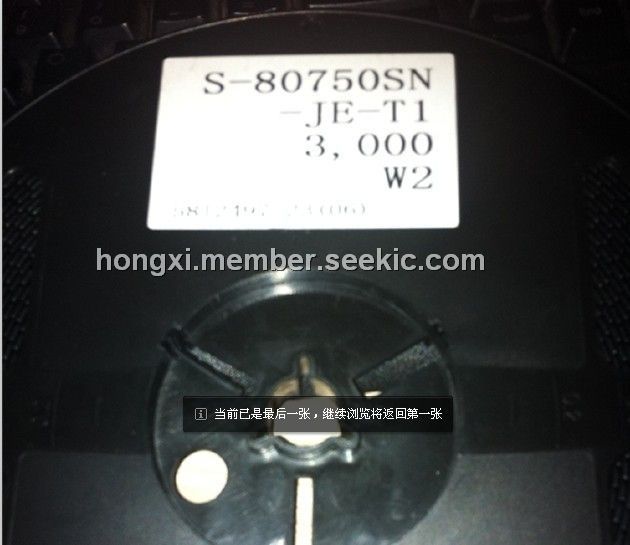

 S-80750SN-JE-T1 |
Seiko Instruments |
Voltage Detectors / Monitors SOT-23-5 5.0V 1uA |
Data Sheet |
Negotiable |
|
||||||||||||
