Product Summary
The SN74CB3Q3306ADCUR is a high-bandwidth FET bus switch utilizing a charge pump to elevate the gate voltage of the pass transistor, providing a low and flat ON-state resistance (ron). The low and flat ON-state resistance allows for minimal propagation delay and supports rail-to-rail switching on the data input/output (I/O) ports. The SN74CB3Q3306ADCUR also features low data I/O capacitance to minimize capacitive loading and signal distortion on the data bus.Specifically designed to support high-bandwidth applications, the SN74CB3Q3306ADCUR provides an optimized interface solution ideally suited for broadband communications, networking, and data-intensive computing systems.
Parametrics
SN74CB3Q3306ADCUR absolute maximum ratings: (1)VCC, Supply voltage range: 鈥?.5 to 4.6 V; (2)VIN, Control input voltage range: 鈥?.5 to 7 V; (3)VI/O, Switch I/O voltage range: 鈥?.5 to 7 V; (4)IIK, Control input clamp current: 鈥?0 mA; (5)II/OK, I/O port clamp current: 鈥?0 mA; (6)II/O, ON-state switch current:卤64 mA; (7)Continuous current through each VCC or GND: 卤100 mA; (8)胃JA, Package thermal impedance: 88鈩?W; (9)Tstg, Storage temperature range: 鈥?5 to 150鈩?
Features
SN74CB3Q3306ADCUR features: (1)High-Bandwidth Data Path (up to 500 MHz); (2)5-V-Tolerant I/Os With Device Powered Up or Powered Down; (3)Low and Flat ON-State Resistance (ron) Characteristics Over Operating Range (ron = 4惟 Typ); (4)Rail-to-Rail Switching on Data I/O Ports: 0- to 5-V Switching With 3.3-V VCC; 0- to 3.3-V Switching With 2.5-V VCC; (5)Bidirectional Data Flow With Near-Zero Propagation Delay; (6)Low Input/Output Capacitance Minimizes Loading and Signal Distortion (Cio(OFF) = 3.5 pF Typ); (7)Fast Switching Frequency (f OE = 20 MHz Max).
Diagrams
<IMG border=0 alt="SN74CB3Q3306ADCUR simplified schematic" src="http://www.seekic.com/uploadfile/ic-mfg/20126251596679.jpg">
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

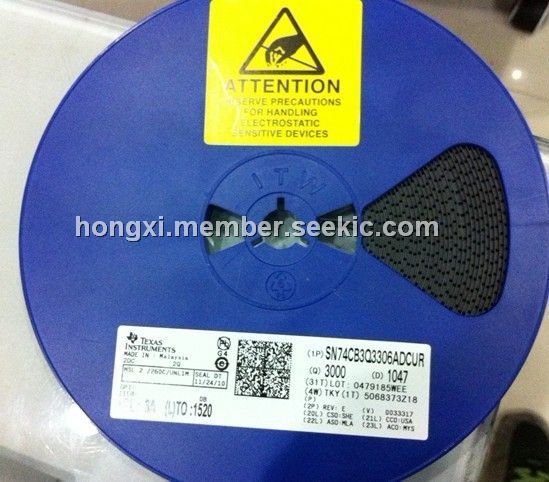

 SN74CB3Q3306ADCUR |
Texas Instruments |
Digital Bus Switch ICs 22-BIT VOLTAGE CLAMP |
Data Sheet |
|
|
||||||||||||
