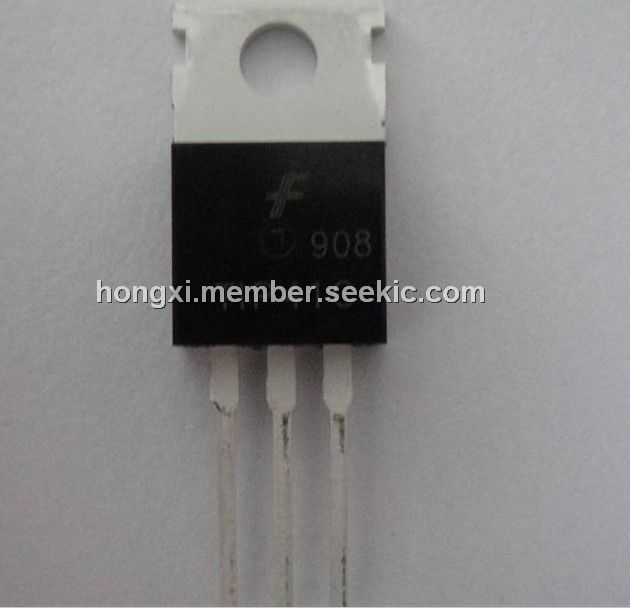

Product Summary

The TIP41C is a power transistor complementary silicon.

Parametrics

TIP41C absolute maximum ratings: (1)Collector-Base Voltage (Ie=0) VCBO: 140 V; (2)Collector-Emitter Voltage (Ib=0) VCEO: 100 V; (3)Emitter-base voltage (reverse) VEBO: 5 V; (4)Continuous collector current IC: 6 A; (5)Peak collector current (max 300μs, duty cycle 2%) ICM: 10 A; (6)Continuous base current IB 3 A; (7)Continuous device dissipation at max 25℃ case temperature Ptot: 65 W; (8)Continuous device dissipation at max 25℃ free air temperature Ptot: 2 W; (9)Unclamped inductive load energy LIC: 2 62.5 mJ; (10)Operating junction temperature range Tj: -65 to+150℃; (11)Storage temperature range Tstg: -65 to+150℃; (12)Lead temperature 3.2 mm from case for 10 seconds TL: 250 ℃.

Features

TIP41C features: (1)65 W at 25℃ Case Temperature; (2)6A Continuous Collector Current; (3)10A Peak Collector Current; (4)100V Collector-Emitter Voltage; (5)Isolated transistor package available on request; (6)Custom selections possible.

Diagrams

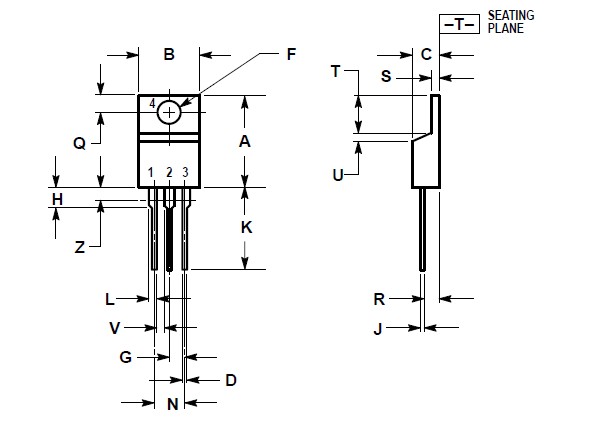

TIP41C dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TIP41C
TIP41C
STMicroelectronics
Transistors Bipolar (BJT) NPN Gen Pur Power
Data Sheet
