Product Summary

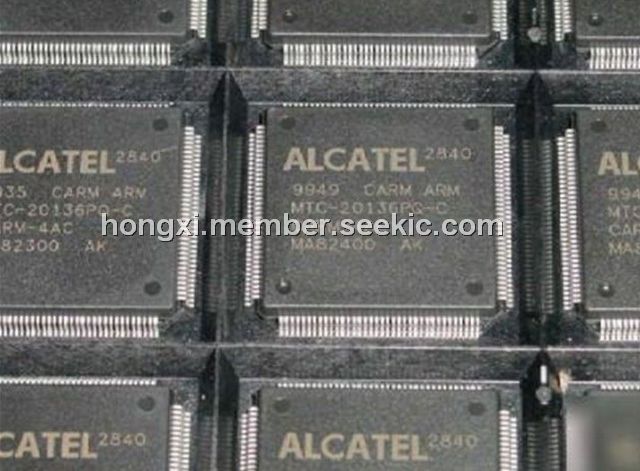

The MTC-20136PQ-C is a dedicated controller chip, specifically designed to control operations of the Alcatel Microelectronics DynaMiTe chipset. The MTC-20136PQ-C offers direct glueless interfaces to the MTC-20136 DMT/ATM transciever and implements a complete control interface for parameters and commands exchange between transceiver and system management. All real time ADSL-related functions (including EOC processing) are completely handled by the MTC-20136.
Parametrics
MTC-20136PQ-C absolute maximum ratings: (1)VDD Supply voltage: 3.0 3.3 3.6 V; (2)TA Ambient temperature1m/s airflow: -40 +85℃; (3)P Power dissipation: 300 400 mW.
Features
MTC-20136PQ-C features: (1)Dedicated controller for use with ADSL transceiver chips MTC-20134 and MTC-20135; (2)Performs ADSL control functions compliant with ANSI T1.413 issue 2; (3)Supports the modem control interface protocol (CTRLE); (4)Embedded high speed ARM microcore; (5)Glueless connection to MTC-20135; (6)Parallel or serial modem control interface (CTRLE) for glue- less connection to management entities; (7)Embedded UART; (8)Supports code download; (9)External Bus Interface for 8 and 16-bit FEPROM and 16-bit SDRAM; (10)144 pins PQFP.
Diagrams
 |
