Product Summary

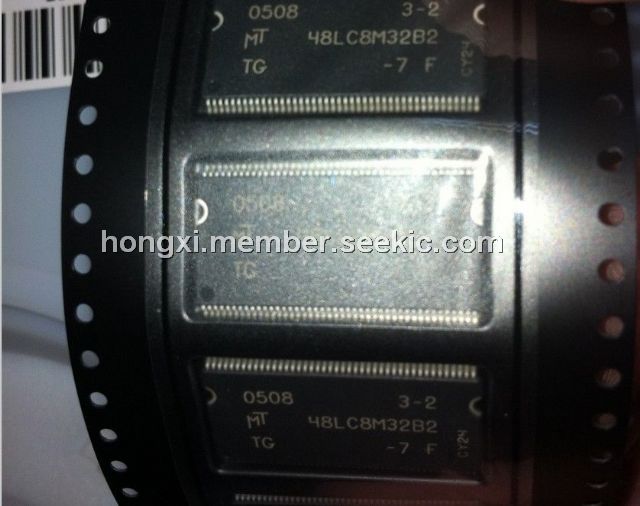

The MT48LC8M32B2TG-7 is a high-speed CMOS, dynamic random-access memory containing 268,435,456-bits. It is internally configured as a quad-bank DRAM with a synchronous interface (all signals are registered on the positive edge of the clock signal, CLK). Each of the 67,108,864-bit banks is organized as 4,096 rows by 512 columns by 32 bits. The MT48LC8M32B2TG-7 is designed to operate in 3.3V memory systems. An auto refresh mode is provided, along with a power-saving, power-down mode. All inputs and outputs are LVTTL-compatible.
Parametrics
MT48LC8M32B2TG-7 absolute maximum ratings: (1)Voltage on VDD, VDDQ Supply, Relative to VSS: -1V to +4.6V; (2)Voltage on Inputs, NC or I/O Pins, Relative to VSS: -1V to +4.6V; (3)Operating Temperature, TA: 0 to +70℃; (4)Storage Temperature (plastic): -55 to +150℃; (5)Power Dissipation: 1W; (6)Operating Temperature, TA (IT): -40 to +85℃.
Features
MT48LC8M32B2TG-7 features: (1)PC100 functionality; (2)Fully synchronous; all signals registered on positive edge of system clock; (3) Internal pipelined operation; column address can be changed every clock cycle; (4)Internal banks for hiding row access/precharge; (5)Programmable burst lengths: 1, 2, 4, 8, or full page; (6)Auto Precharge, includes Concurrent Auto Precharge, and Auto Refresh Modes; (7)Self Refresh Mode; (8)64ms, 4,096-cycle refresh (15.6μs/row); (9)LVTTL-compatible inputs and outputs; (10)Single +3.3V ±0.3V power supply; (11)Supports CAS latency of 1, 2, and 3.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MT48LC8M32B2TG-7 IT TR |
|
IC SDRAM 256MBIT 143MHZ 86TSOP |
Data Sheet |
Negotiable |
|
||||
|
MT48LC8M32B2TG-7 TR |
|
IC SDRAM 256MBIT 143MHZ 86TSOP |
Data Sheet |
Negotiable |
|
||||
