Product Summary

The IRF3205 is a power MOSFET.

Parametrics

IRF3205 absolute maximum ratings: (1)ID@TC = 25°C, Continuous Drain Current, VGS@10V: 110A; (2)ID@TC = 100°C, Continuous Drain Current, VGS@10V: 80A; (3)IDM, Pulsed Drain Current: 390A; (4)PD@TC = 25°C, Power Dissipation: 200W; (5)VGS, Gate-to-Source Voltage: ± 20V; (6)IAR, Avalanche Current: 62A.

Features

IRF3205 features: (1)Advanced Process Technology; (2)Ultra Low On-Resistance; (3)Dynamic dv/dt Rating; (4)175°C Operating Temperature; (5)Fast Switching; (6)Fully Avalanche Rated.

Diagrams

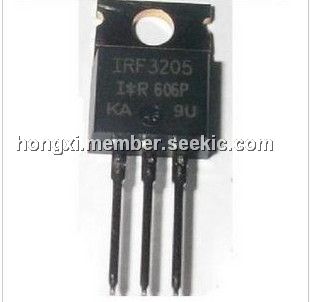

IRF3205 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IRF3205
IRF3205
International Rectifier
MOSFET N-CH 55V 110A TO-220AB
Data Sheet
1-250: $1.12
IRF3205L
IRF3205L

MOSFET N-CH 55V 110A TO-262
Data Sheet
0-150: $1.86
IRF3205SPBF
IRF3205SPBF
International Rectifier
MOSFET
Data Sheet
0-1: $1.73
1-25: $1.12
25-100: $0.89
100-250: $0.88
IRF3205PBF
IRF3205PBF
International Rectifier
MOSFET MOSFT 55V 98A 8mOhm 97.3nC
Data Sheet
0-1: $1.96
1-25: $1.27
25-100: $0.92
100-250: $0.86
IRF3205LPBF
IRF3205LPBF
International Rectifier
MOSFET MOSFT 55V 110A 8mOhm 97.3nC
Data Sheet
0-1: $1.91
1-25: $1.24
25-100: $0.89
100-250: $0.83
IRF3205S
IRF3205S
International Rectifier
MOSFET N-CH 55V 110A D2PAK
Data Sheet
1-250: $1.10
IRF3205ZPBF
IRF3205ZPBF
International Rectifier
MOSFET MOSFT 55V 110A 6.5mOhm 76nC Qg
Data Sheet
0-1: $2.12
1-25: $1.37
25-100: $0.99
100-250: $0.93
IRF3205STRLPBF
IRF3205STRLPBF
International Rectifier
MOSFET MOSFT 55V 110A 8mOhm 97.3nC
Data Sheet
0-1: $2.41
1-25: $1.57
25-100: $1.13
100-250: $1.06
