Product Summary
The ISL6261CRZ is a single-phase buck regulator implementing lntel IMVP-6 protocol, with embedded gate drivers. The heart of the ISL6261CRZ is the patented R3 Technology, Intersil’s Robust Ripple Regulator modulator. To boost battery life, the ISL6261CRZ supports DPRSLRVR (deeper sleep) function and maximizes the efficiency via automatically changing operation modes.
Parametrics
ISL6261CRZ absolute maximum ratings: (1)Supply Voltage, VDD: -0.3 to +7V; (2)Battery Voltage, VIN:+28V; (3)Boot Voltage (BOOT):-0.3V to +33V; (4)Boot to Phase Voltage (BOOT-PHASE):-0.3V to +7V(DC), -0.3V to +9V(<10ns); (5)Phase Voltage (PHASE):-7V (<20ns Pulse Width, 10uJ); (6)UGATE Voltage (UGATE):PHASE-0.3V (DC) to BOOT, PHASE-5V(<20ns Pulse Width, 10uJ) to BOOT; (7)LGATE Voltage (LGATE):-0.3V (DC) to VDD+0.3V, -2.5V (<20ns Pulse Width, 5uJ) to VDD+0.3V; (8)All Other Pins:-0.3V to (VDD +0.3V); (9)Open Drain Outputs, PGOOD, VR_TT#:-0.3 to +7V; (10)HBM ESD Rating:>3kV.
Features
ISL6261CRZ features: (1)Precision single-phase CORE voltage regulator: 0.5% system accuracy over temperature, Enhanced load line accuracy; (2)Internal gate driver with 2A driving capability; (3)Microprocessor voltage identification input: 7-Bit VID input, 0.300V to 1.500V in 12.5mV steps, Support VID change on-the-fly; (4)Multiple current sensing schemes supported: Lossless inductor DCR current sensing, Precision resistive current sensing; (5)Thermal monitor; (6)User programmable switching frequency; (7)Differential remote voltage sensing at CPU die; (8)Overvoltage, undervoltage, and overcurrent protection; (9)Pb-free plus anneal available (RoHS compliant).

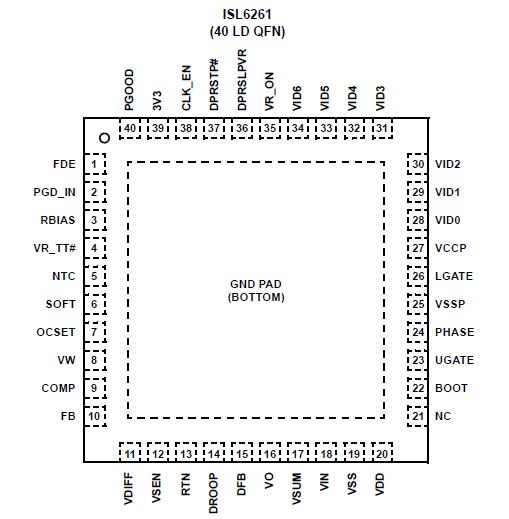

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ISL6261CRZ |
|
IC CTRLR BUCK 1PHASE 40-VFQFN-EP |
Data Sheet |
|
|
||||||
|
ISL6261CRZ-T |
|
IC CTRLR BUCK 1PHASE 40-VFQFN-EP |
Data Sheet |
|
|
||||||
