Product Summary
The CD4053BCM is an analog multiplexer. It is digitally controlled analog switches having low “ON” impedance and very low “OFF” leakage currents. Control of analog signals up to 15Vp-p can be achieved by digital signal amplitudes of 3 to 15V.
Parametrics
CD4053BCM absolute maximum ratings: (1)DC Supply Voltage (VDD): 0.5 VDC to +18 VDC; (2)Input Voltage(VIN): 0.5 VDC to VDD +0.5 VDC; (3)Storage Temperature Range (TS): 65°C to +150°C; (4)Power Dissipation (PD) Dual-In-Line: 700 mW; (5)Small Outline: 500 mW; (6)Lead Temperature (TL) (soldering, 10 seconds): 260°C; (7)DC Supply Voltage (VDD): +5 VDC to +15 VDC.
Features
CD4053BCM features: (1)Wide range of digital and analog signal levels: digital 3 to 15V, analog to 15Vp-p; (2)Low “ON” resistance: 80 (typ.) over entire 15Vp-p signal-input range for VDD VEE = 15V; (3)High “OFF” resistance: channel leakage of ±10 pA (typ.) at VDD VEE = 10V; (4)Logic level conversion for digital addressing signals of 3 to 15V (VDD VSS = 3 to 15V) to switch analog signals to 15 Vp-p (VDD VEE = 15V).

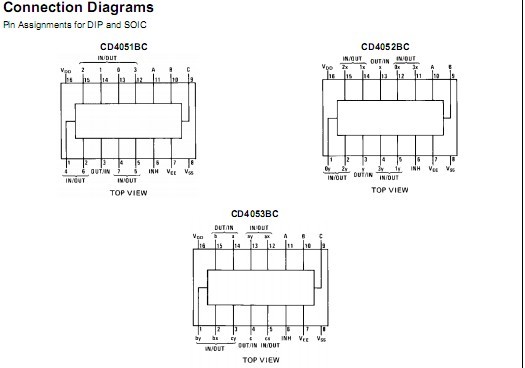

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 CD4053BCM |
Fairchild Semiconductor |
Multiplexer Switch ICs Multiplex/Demultiple |
Data Sheet |
Negotiable |
|
||||
|
CD4053BCM_Q |
Fairchild Semiconductor |
Multiplexer Switch ICs Multiplex/Demultiple |
Data Sheet |
Negotiable |
|
||||
|
CD4053BCMX |
Fairchild Semiconductor |
Multiplexer Switch ICs Multiplex/Demultiple |
Data Sheet |
Negotiable |
|
||||
