Product Summary

The S-817A32ANB-CUV-T2 is a 3-terminal positive voltage regulator, developed using CMOS technology. Small ceramic capacitors can be used as the output capacitor, and the S-817A32ANB-CUV-T2 provides stable operation with low loads down to 1 μA. Compared with the conventional voltage regulator, it is of low current consumption, and with a lineup of the super small package. It is optimal as a power supply of small portable device. The applications of the S-817A32ANB-CUV-T2 include Power source for battery-powered devices, Power source for personal communication devices and Power source for home electric/electronic appliances.

Parametrics

S-817A32ANB-CUV-T2 absolute maximum ratings: (1)Input voltage,VIN: VSS-0.3 to VSS+12V; (2)Output voltage, VOUT: VSS-0.3 to VIN+0.3V; (3)Power dissipation PD: 300mW; (4)Operating temperature range Topr: -40 to +85℃; (5)Storage temperature Tstg: -40 to +125℃.

Features

S-817A32ANB-CUV-T2 features: (1)Ultra-low current consumption: Operating current: Typ. 1.2 μA, Max. 2.5 μA; (2)Output voltage: 1.1 to 6.0 V, selectable in 0.1 V steps; (3)Output voltage accuracy: ±2.0%; (4)Output current: 50 mA capable (3.0 V output product, VIN=5 V); 75 mA capable (5.0 V output product, VIN=7 V); (5)Dropout voltage: Typ. 160 mV (VOUT = 5.0 V, IOUT = 10 mA); (6)Low ESR capacitor (e.g. A ceramic capacitor of 0.1 μF or more) can be used as an output capacitor; (7)Short circuit protection for: Series A; (8)Excellent Line Regulation: Stable operation at light load of 1 μA.

Diagrams

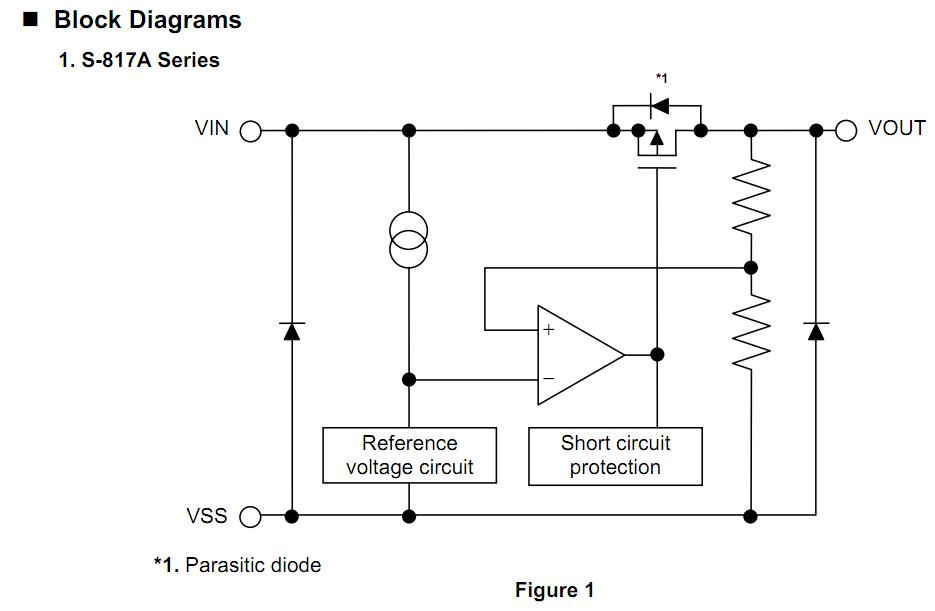

S-817A32ANB-CUV-T2 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

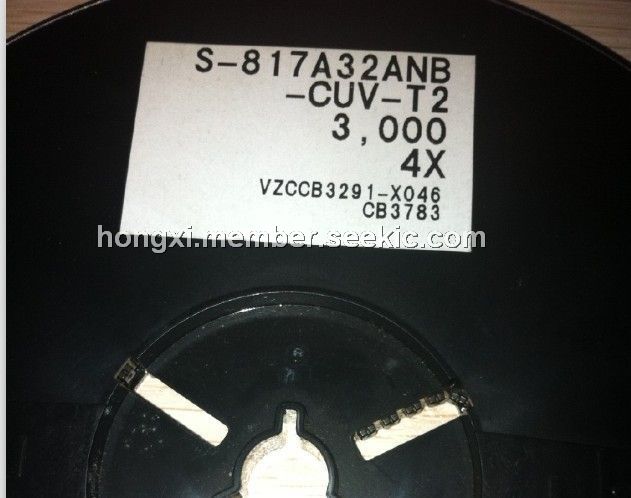

S-817A32ANB-CUV-T2
S-817A32ANB-CUV-T2
Seiko Instruments
Low Dropout (LDO) Regulators 3.2V 1.2uA 2.0%
Data Sheet
Negotiable
