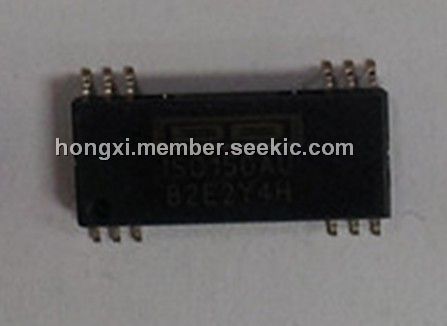

ISO150AU

Product Summary

The ISO150 is a two-channel, galvanically isolated data coupler capable of data rates of 80MBaud, typical. Each channel can be individually programmed to transmit data in either direction
Data is transmitted across the isolation barrier by coupling complementary pulses through high voltage 0.4pF capacitors. Receiver circuitry restores the pulses to standard logic levels. Differential signal transmission rejects isolation-mode voltage transients up to 1.6kV/μs
ISO150 avoids the problems commonly associated with optocouplers. Optically isolated couplers require high current pulses and allowance must be made for LED aging. The ISO150’s Bi-CMOS circuitry operates at 25mW per channel
ISO150 is available in a 24-pin DIP package and in a 28-lead SOIC. Both are specified for operation from; 40?C to 85?C.

Parametrics

ISO150AP, AU
PARAMETER CONDITION MIN TYP MAX UNITS
ISOLATION PARAMETERS 60Hz 1500
Rated Voltage, Continuous 1s, 5pC 2400
Partial Discharge, 100% Test;
Creepage Distance (External)
DIP—“P” Package; 16
SOIC—“U” Package; 7.2
Internal Isolation Distance; 0.10
Isolation Voltage Transient Immunity 1.6
Barrier Impedance; >1014 || 7
Leakage Current; 240Vrms, 60Hz 0.6
DC PARAMETERS;
Logic Output Voltage, High, VOH; IOH = 6mA VS–1 VS
Low, VOL; IOL = 6mA 0 0.4

Features

REPLACES HIGH-PERFORMANCE
OPTOCOUPLERS
DATA RATE: 80M Baud, typ
LOW POWER CONSUMPTION:
25mW Per Channel, max
TWO CHANNELS, EACH BI-DIRECTIONAL,
PROGRAMMABLE BY USER
PARTIAL DISCHARGE TESTED: 2400Vrms
CREEPAGE DISTANCE OF 16.5mm (DIP)
LOW COST PER CHANNEL
PLASTIC DIP AND SOIC PACKAGESvs
