Product Summary

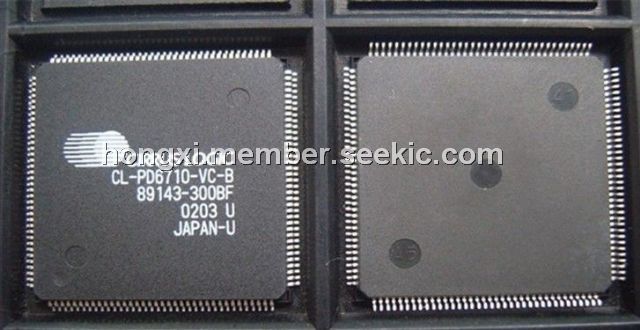

The CL-PD6710-VC-B is a single-chip PC Card host adapter solution capable of controlling one PC Card socket. The chip of the CL-PD6710-VC-B is compliant with PC Card Standard, PCMCIA 2.1, is optimized for use in notebook and handheld computer where reduced form factor and low power consumption are critical design objective. With the CL-PD6710-VC-B, a complete PC Card solution with power-control logic can occupy less than 1.5 square inches (excluding the socket connector). With the CL-PD6710-VC-B, a complete dual-socket PC Card solution with power-control logic can occupy less than 2 square inches (excluding socket connectors).
Parametrics
CL-PD6710-VC-B absolute maximum ratings: (1)Ambient temperature under bias: 0℃ to 70℃; (2)Storage temperature: -65℃ to 150℃; (3)Voltage on any pin (with respect to ground): -0.5 volts to 0.5 volts greater than voltage of +5V pin,respective to ground; (4)Operating power dissipation: 500 mW; (5)Suspend power dissipation: 10 mW; (6)Power supply voltage: 7 volts; (7)Injection current (latch up): 25 mA.
Features
CL-PD6710-VC-B features: (1)Single-chip PC Card host adapters; (2)Direct connection to ISA (PC AT) bus and one or two PC Card sockets; (3)Compliant with PC Card Standard, PCMCIA 2.1, and JEIDA 4.1; (4)82365SL-compatible register set, ExCA compatible; (5)Automatic Low-Power Dynamic mode for lowest active power consumption; (6)Programmable Suspend mode; (7)Hardware-enabled Super Suspend mode; (8)Five programmable memory windows per socket and two programmable I/O windows per socket; (9)Programmable card access cycle timing; (10)8- or 16-bit system bus interface; (11)8- and 16-bit PC Card interface support; (12)ATA disk interface support; (13) DMA support (CL-PD6722); (14)Card-voltage sense support; (15)PC Card activity indicator.

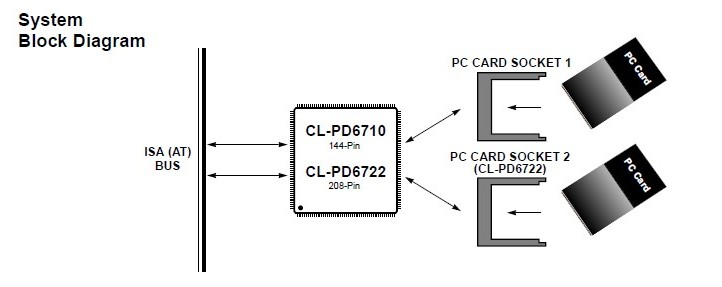

Diagrams
 |
