Product Summary

The EPM9560RC208-15 is a programming logic device.

Parametrics

EPM9560RC208-15 absolute maximum ratings: (1)Supply voltage: 7V; (2)DC input voltage: 7V; (3)supply voltage during in-system programming: 7V; (4)DC output current: 25mA; (5)storage temperature: -65 to 150℃; (6)ambient temperature: -65 to 135℃; (7)junction temperature: 135℃.

Features

EPM9560RC208-15 features: (1)Programmable macrocell flipflops with individual clear, preset, clock, and clock enable controls; (2)Programmable security bit for protection of proprietary designs; (3)Software design support and automatic place-and-route provided by Altera’s MAX+PLUS? II development system on Windows-based; (4)PCs as well as Sun SPARCstation, HP 9000 Series 700/800, and IBM RISC System/6000 workstations.

Diagrams

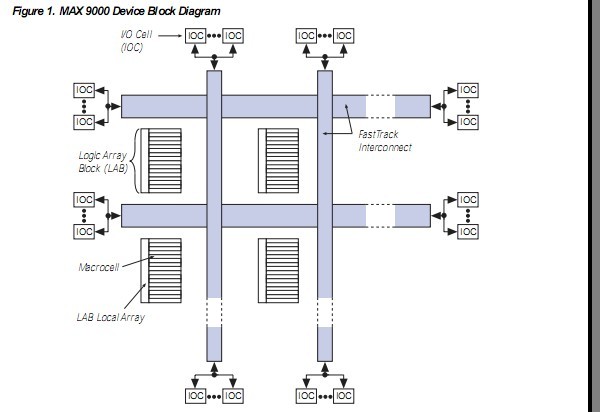

EPM9560RC208-15 diagram
