Product Summary

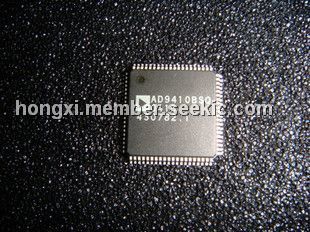

The AD9410BSQ is a 10-bit monolithic sampling analog-to-digital converter with an on-chip track-and-hold circuit and is optimized for high-speed conversion and ease of use. The product operates at a 210 MSPS conversion rate, with outstanding dynamic performance over its full operating range.
Parametrics
AD9410BSQ specifications: (1)input logic voltage: 4V; (2)input logic current: 400μA; (3)differential input voltage: 0.4V; (4)DS common-mode input voltage: 1.5V; (5)digital input pin capacitance: 3pF.
Features
AD9410BSQ features: (1)SNR=54dB with 99 MHz Analog Input; (2)500 MHz Analog Bandwidth; (3)On-Chip Reference and Track/Hold; (3)1.5 V p-p Differential Analog Input Range; (4)5.0 V and 3.3 V Supply Operation; (5)3.3 V CMOS/TTL Outputs.

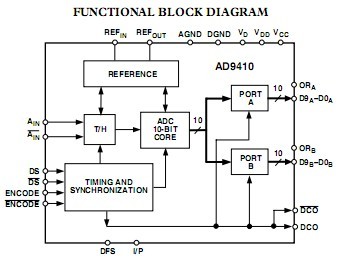

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD9410BSQ |
Analog Devices Inc |
IC ADC 10BIT 210MSPS 80-LQFP |
Data Sheet |
Negotiable |
|
||||
|
AD9410BSQZ |
Analog Devices Inc |
IC ADC 10BIT 210MSPS 80-LQFP |
Data Sheet |
Negotiable |
|
||||
