Product Summary

The TDA7265 is class AB dual Audio power amplifier as sembled in the Multiwatt package. It is specially designed for high quality sound application as Hi-Fi musiccenters and stereo TV sets.

Parametrics

TDA7265 absolute maximum ratings: (1)VS, DC Supply Voltage: ±25V; (2)IO, Output Peak Current(internallylimited): 4.5A; (3)Ptot, Power Dissipation Tcase =70°C: 30W; (4)Top, OperatingTemperature: -20 to 85°C; (5)Tstg,Tj, Storage and Junction Temperature: -40 to +150°C.

Features

TDA7265 features: (1)WIDE SUPPLY VOLTAGE RANGE(UP TO ±25V ABS MAX.); (2)SPLIT SUPPLY HIGH OUTPUT POWER: 25+25W@ THD=10%, RL =8,VS =+20V; (3)NOPOP AT TURN-ON/OFF.

Diagrams

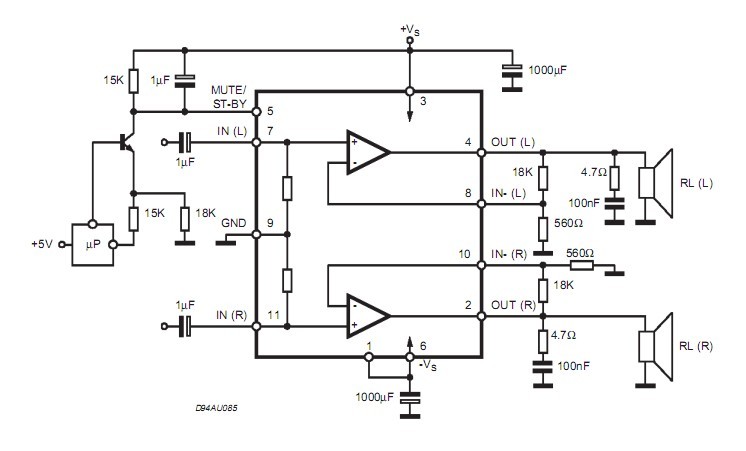

TDA7265 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TDA7265
TDA7265

STMicroelectronics

Audio Amplifiers 25W Stereo Amplifier

Data Sheet

0-1: $3.39
1-10: $2.74
10-100: $2.44
100-250: $2.18
TDA7265A
TDA7265A

STMicroelectronics

Audio Amplifiers 25 25W STEREO AMP Mute ST-BY AB DUAL

Data Sheet

0-295: $2.60
295-500: $2.37
500-1000: $2.06
1000-2000: $1.99
TDA7265B
TDA7265B

STMicroelectronics

Switching Converters, Regulators & Controllers 30W 30W Stereo AMP Class AB Dual 35V

Data Sheet

0-285: $2.02
285-500: $1.82
500-1000: $1.53
1000-2000: $1.49
