Product Summary

The SD1446 is a 12.5V Class Cepitaxial silicon NPN planar transistor designed primarily for land mobile transmitter applications. This device utilizes emitter ballasting and is extremely stable and capable of withstanding high VSWR under operating conditions.

Parametrics

SD1446 absolute maximum ratings: (1)VCBO, Collector-BaseVoltage: 36V; (2)VCEO, Collector-Emitter Voltage: 18V; (3)VEBO, Emitter-Base Voltage: 3.5V; (4)IC, DeviceCurrent1: 2.0A; (5)PDISS, PowerDissipation: 183W; (6)TJ, Junction Temperature: +200°C; (7)TSTG, Storage Temperature: 65 to +150 °C.

Features

SD1446 features: (1)50MHz; (2)12.5VOLTS; (3)EFFICIENCY 55%; (4)COMMON EMITTER; (5)GOLD METALLIZATION; (6)POUT=70W MIN. WITH 10dB GAIN.

Diagrams

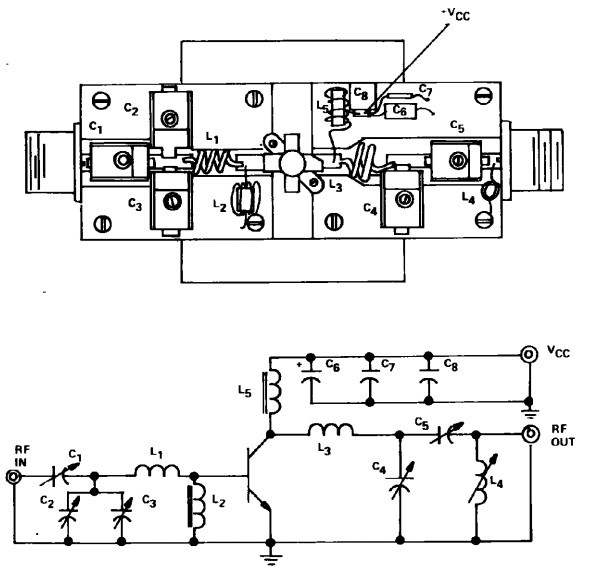

SD1446 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

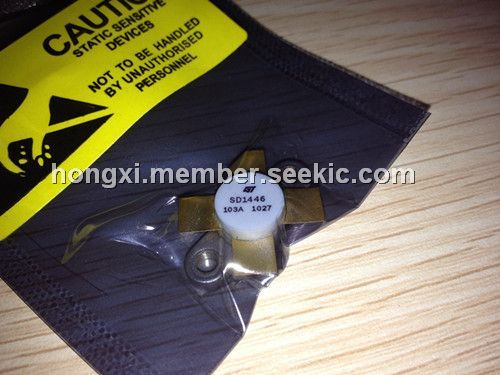

SD1446
SD1446
Advanced Semiconductor, Inc.
Transistors RF Bipolar Power RF Transistor
Data Sheet
0-1: $43.20
1-10: $36.00
10-25: $32.40
25-50: $28.80
