Product Summary

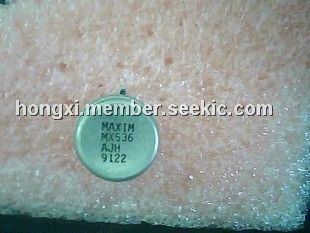

The MX536AJH is a true RMS-to-DC converter. It features low power and is designed to accept low-level input signals from 0 to 7VRMS for the MX536A and 0 to 200mVRMS for the MX636.
Parametrics
MX536AJH absolute maximum ratings: (1)Supply Voltage: Dual Supplies (MX536A): ±18V; (2)Single Supply (MX536A): +36V; (3)Input Voltage (MX536A: ±25V; (4)Power Dissipation (Package) Plastic DIP (derate 12mW/°C above +75°C): 450mW; (5)Small Outline (derate 10mW/°C above +75°C): 400mW; (6)Ceramic (derate 10mW/°C above +75°C): 500mW; (7)TO-100 metal can (derate 7mW/°C above +75°C): 450mW.
Features
MX536AJH features: (1)True RMS-to-DC Conversion; (2)Computes RMS of AC and DC Signals; (3)Wide Response: 2MHz Bandwidth for VRMS > 1V (MX536A); (4)Auxiliary dB Output:60dB Range (MX536A); (5)Single- or Dual-Supply Operation; (6)Low Power:1.2mA typ.

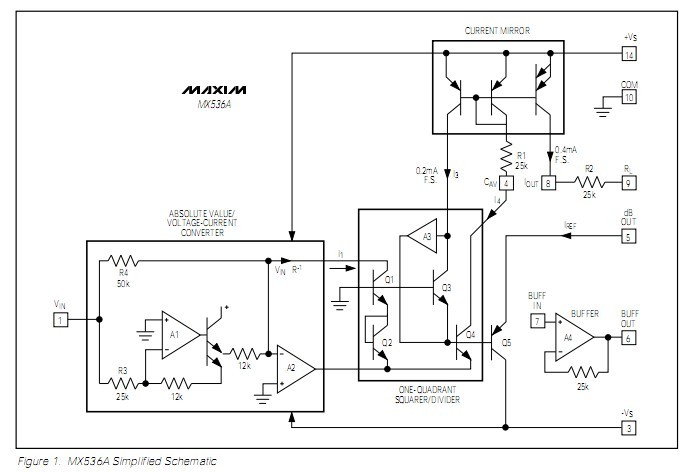

Diagrams
 |
 MX536A |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
MX536AJCWE+ |
|
IC CONV TRUE RMS-DC 2MHZ 16SOIC |
Data Sheet |
Negotiable |
|
||||
|
MX536AJCWE |
|
IC CONV TRUE RMS-DC 2MHZ 16SOIC |
Data Sheet |
Negotiable |
|
||||
