Product Summary
The EPF10K100EQC240-1 is a programmable logic device.
Parametrics
EPF10K100EQC240-1 absolute maximum ratings: (1)supply voltage: 3.6V; (2)DC input voltage: 5.75V; (3)DC output current: 25mA; (4)storage temperature: -65 to 150℃; (5)ambient temperature: -65 to 135℃; (6)junction temperature: 135℃.
Features
EPF10K100EQC240-1 features: (1)Fabricated on an advanced process and operate with a 2.5-V internal supply voltage; (2)In-circuit reconfigurability (ICR) via external configuration devices, intelligent controller, or JTAG port; (3)ClockLockTM and ClockBoostTM options for reduced clock delay/skew and clock multiplication; (4)Built-in low-skew clock distribution trees; (5)100% functional testing of all devices; test vectors or scan chains are not required.

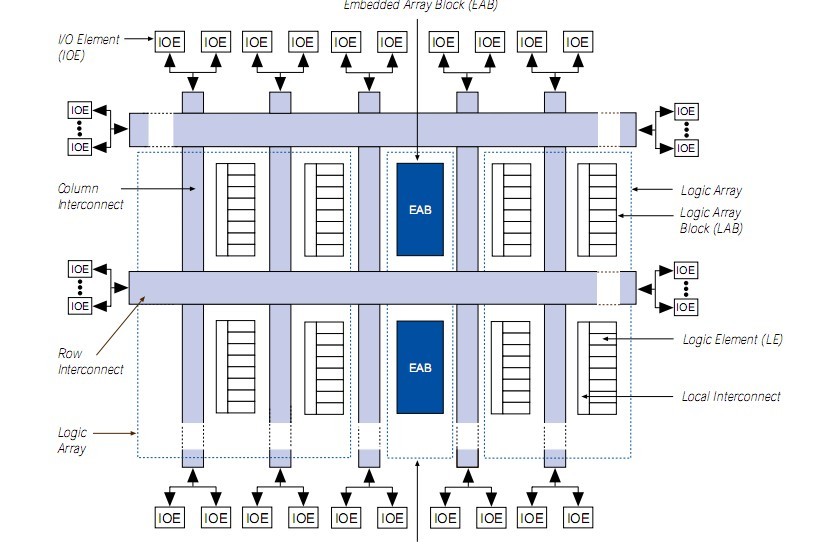

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EPF10K100EQC240-1 |
|
IC FLEX 10KE FPGA 100K 240-PQFP |
Data Sheet |
|
|
||||||
|
EPF10K100EQC240-1N |
|
IC FLEX 10KE FPGA 100K 240-PQFP |
Data Sheet |
|
|
||||||
|
EPF10K100EQC240-1X |
|
IC FLEX 10KE FPGA 100K 240-PQFP |
Data Sheet |
|
|
||||||
