Product Summary
The ADM1485AR is a differential line transceiver suitable for high speed bidirectional data communication on multipoint bus transmission lines. It is designed for balanced data transmission and complies with both EIA Standards RS-485 and RS-422.
Parametrics
ADM1485AR absolute maximum ratings: (1)VCC: 7V; (2)Driver input: -0.3 to VCC+0.3V; (3)Driver output: -14 to 14V; (4)power dissipation: 500mW; (5)operating temperature range: 0 to 70℃; (6)lead temperature: 300℃.
Features
ADM1485AR features: (1)30 Mb/s Data Rate; (2)Single +5 V Supply; (3)–7 V to +12 V Bus Common-Mode Range; (4)High Speed, Low Power BiCMOS; (5)Thermal Shutdown Protection; (6)Short Circuit Protection; (7)Zero Skew Driver; (8)Driver Propagation Delay: 10 ns.

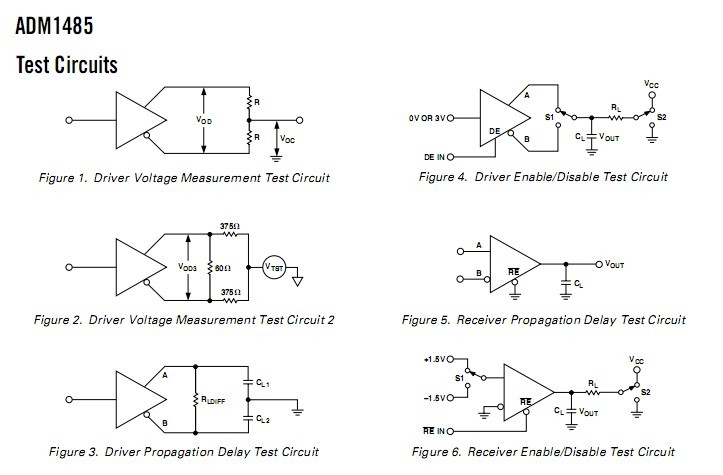

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADM1485AR |
Analog Devices Inc |
IC TX/RX RS-485 HS 5V 8SOIC |
Data Sheet |
|
|
||||||||||||||||||||
 |
ADM1485ARM |
Analog Devices Inc |
IC TXRX RS-485 HS 5V 8MSOP |
Data Sheet |
|
|
||||||||||||||||||||
 |
ADM1485ARMZ |
|
IC TXRX RS485 SGL DIFF 8MSOP |
Data Sheet |
|
|
||||||||||||||||||||
|
ADM1485ARMZ-REEL |
|
IC TXRX RS485 SGL DIFF 8MSOP |
Data Sheet |
|
|
||||||||||||||||||||
|
ADM1485ARM-REEL |
Analog Devices Inc |
IC TXRX RS-485 HS 5V 8MSOP |
Data Sheet |
|
|
||||||||||||||||||||
|
ADM1485ARM-REEL7 |
Analog Devices Inc |
IC TXRX RS-485 HS 5V 8MSOP |
Data Sheet |
|
|
||||||||||||||||||||
|
ADM1485ARMZ-REEL7 |
|
IC TXRX RS-485 5V HS 8MSOP |
Data Sheet |
|
|
||||||||||||||||||||
 |
ADM1485ARZ |
|
IC TX/RX RS-485 HS 5V 8SOIC |
Data Sheet |
|
|
||||||||||||||||||||
