Product Summary

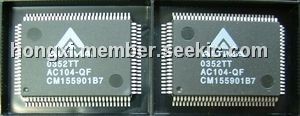

The AC104-QF is an ultra low power 10/100 quad RMII ethernet transceiver. It is a highly integrated, 3.3V, low power, four port, 10 base-T, ethernet transceiver implemented in 0.35μm CMOS technology.
Parametrics
AC104-QF absolute maximum ratins: (1)storage temperature: -55 to 150℃; (2)VCC supply referenced to GND: -0.5 to 5V; (3)digital input voltage: -0.5 to VCC; (4)dc output voltage: -0.5 to VCC.
Features
AC104-QF features: (1)base line wander compensation; (2)multi-function LED outputs; (3)cable length indicator; (4)8 programmable interrupts; (5)diagnostic registors.

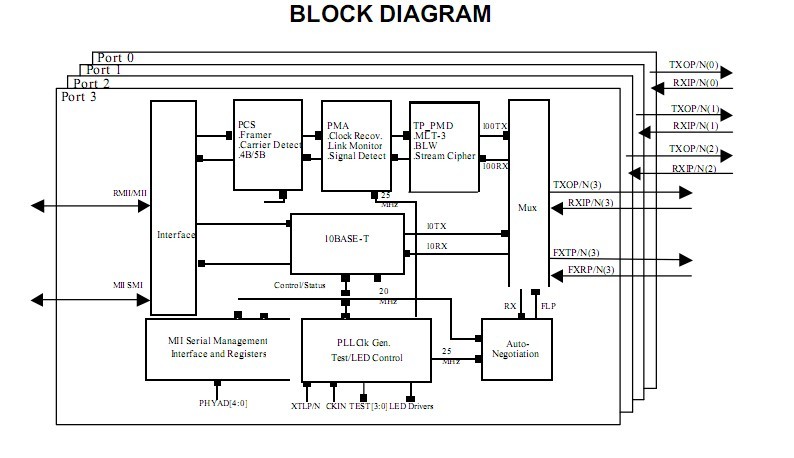

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AC104-QF |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||||||
