Product Summary
The TMS320L F2406APZA is a DSP controller.
Parametrics
TMS320L F2406APZA absolute maximum ratings: (1)Supply voltage range: -0.3 to 4.6V; (2)VCCP range: -0.3 to 5.5V; (3)Output voltage range: -0.3 to 4.6V; (4)input clamp current: ±20mA; (5)operating temperature range: -40 to 85℃.
Features
TMS320L F2406APZA features: (1)High-Performance Static CMOS Technology; (2)25-ns Instruction Cycle Time (40 MHz); (3)40-MIPS Performance; (4)Low-Power 3.3-V Design; (5)Based on TMS320C2xx DSP CPU Core; (6)Code-Compatible With F243/F241.

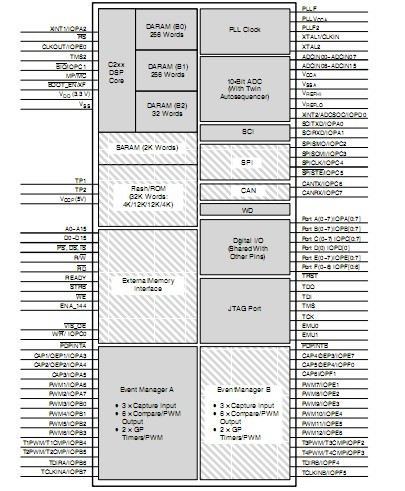

Diagrams
![]() |
