Product Summary

The TMP47P443VNG is a microcontroller. It uses an adapter socket to connect with PROM programmer.

Parametrics

TMP47P443VNG absolute maximum ratings: (1)supply voltage: -0.3 to 6.5V; (2)program voltage: -0.3 to 13V; (3)input voltage: -0.3 to VDD0.3V; (4)output current: 30mA; (5)power dissipation: 300mW.

Features

TMP47P443VNG features: (1)Output Level High Voltage, VIH4: Vcc V; (2)Output Level High Voltage, VIL4: 0 to Vcc+0.3 v; (3)Supply Voltage, Vcc: 6.0v; (4)Programming Voltage, Vpp: ±0.25V.

Diagrams

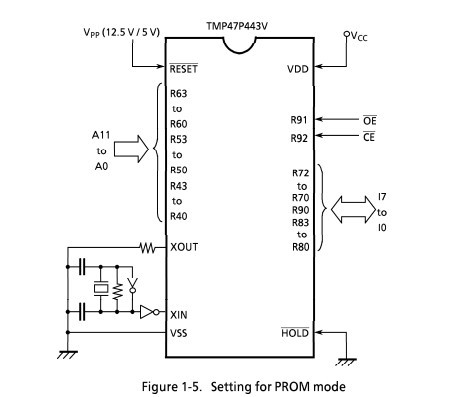

TMP47P443VNG diagram
