Product Summary
The AD515 is a low power FET-input electrometer Op amplifier.
Parametrics
AD515 absolute maximum ratings: (1)frequency response: 1MHz; (2)output characterstics: 10V min; (3)input impedance: 1.6pF; (4)input voltage range: 20V min.
Features
AD515 specifications: (1)Ultralow Bias Current: 75 fA max (AD515AL); (2)Ultralow Bias Current: 150 fA max (AD515AK); (3)Ultralow Bias Current: 300 fA max (AD515AJ); (4)Low Power: 1.5 mA max Quiescent Current; (5)Low Power: (0.6 mA typ).

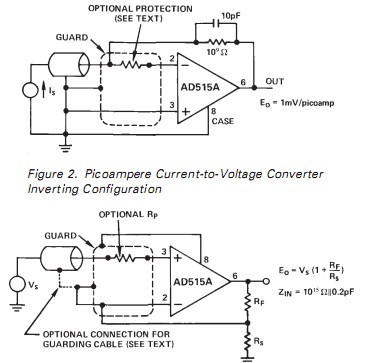

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD515LH |
Texas Instruments |
IC OPAMP GP 350KHZ SGL TO-99-8 |
Data Sheet |
Negotiable |
|
||||
|
AD515KH |
Texas Instruments |
IC OPAMP GP 350KHZ SGL TO-99-8 |
Data Sheet |
Negotiable |
|
||||
|
AD515JH |
Texas Instruments |
IC OPAMP GP 350KHZ SGL TO-99-8 |
Data Sheet |
Negotiable |
|
||||
|
AD515A |
Other |
|
Data Sheet |
Negotiable |
|
||||
